Explore with IMAS-Python¶

In this part of the training, we will learn how to use Python to explore data saved in IDSs.

Explore which IDS structures are available¶

Most codes will touch multiple IDSs inside a single IMAS data entry. For example a heating code using a magnetic equilibrium from the equilibrium IDS with a heating profile from the core_sources IDS. To find out how to write your code, there are two main strategies: read the IMAS Data Dictionary documentation or explore the data interactively. We will focus on the latter method here.

Exercise 1¶

import imas

# IMAS-Python has multiple DD versions inside, which makes this exercise harder.
# We provide possible solutions here

# Option 1: Print the IDSs in the default-selected DD version
factory = imas.IDSFactory()
print("IDSs available in DD version", factory.version)
print(factory.ids_names())

# Alternative:
for ids_name in factory:
    print(ids_name, end=", ")
print()

# Option 2: Print the IDSs in a specific DD version
factory = imas.IDSFactory("3.39.0")
print("IDSs available in DD version", factory.version)
print(list(factory))

Explore the structure and contents of an IDS¶

IMAS-Python has several features and utilities for exploring an IDS. These are best used in an interactive Python console, such as the default python console or the IPython console.

Tab completion¶

As with most Python objects, you can use Tab completion on IMAS-Python objects.

• IDSFactory has tab completion for IDS names:

  >>> factory = imas.IDSFactory()
  >>> factory.core_
  factory.core_instant_changes(  factory.core_sources(
  factory.core_profiles(         factory.core_transport(


• IDSToplevel and IDSStructure have tab completion for child nodes:



Interactive help¶

Use the built-in help() function to get more information on IMAS-Python functions, objects, etc.

>>> import imas
>>> help(imas.DBEntry)
Help on class DBEntry in module imas.db_entry:

class DBEntry(builtins.object)
[...]

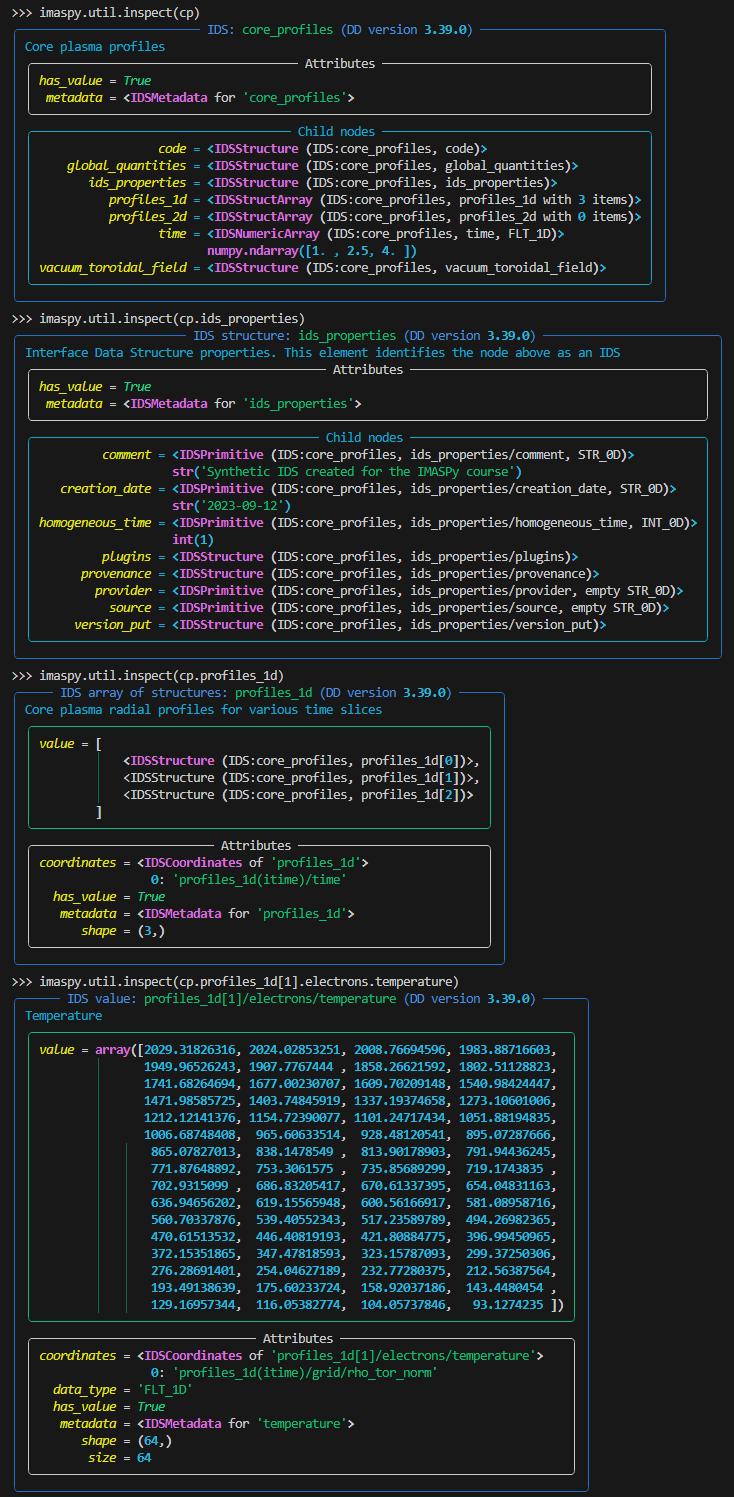

Inspecting IMAS-Python objects¶

Tab completion is nice when you already know more or less what attribute you are looking for. For a more comprehensive overview of any IMAS-Python node, you can use imas.util.inspect() to show:

1. The path to the node (relative to the IDS it is contained in)

2. The Data Dictionary version

3. The documentation metadata from the Data Dictionary

4. The value of the node (when applicable)

5. Attributes of the node

6. An overview of child nodes (when applicable)

Examples

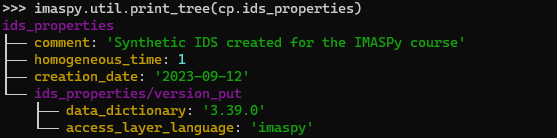

Printing an IDS tree¶

Another useful utility function in IMAS-Python is imas.util.print_tree(). This will print a complete tree structure of all non-empty quantities in the provided node. As an argument you can give a complete IDS, or any structure in the IDS such as ids_properties:

Find paths in an IDS¶

In IMAS-Python you can also search for paths inside an IDS: imas.util.find_paths(). This can be useful when you know what quantity you are looking for, but aren’t sure exactly in which (sub)structure of the IDS it is located.

imas.util.find_paths() accepts any Python regular expression (see re) as input. This allows for anything from basic to advanced searches.

Examples

import imas.util

factory = imas.IDSFactory()
core_profiles = factory.core_profiles()

print("Paths containing `rho`:")
print(imas.util.find_paths(core_profiles, "rho"))
print()

print("Paths containing `rho`, not followed by `error`:")
print(imas.util.find_paths(core_profiles, "rho(?!.*error)"))
print()

print("All paths ending with `time`:")
print(imas.util.find_paths(core_profiles, "time$"))
print()

Exercise 2¶

import imas.util
import imas.training

# Open input data entry
entry = imas.training.get_training_db_entry()

# Get the core_profiles IDS
cp = entry.get("core_profiles")

# Inspect the IDS
imas.util.inspect(cp, hide_empty_nodes=True)

entry.close()

import imas.util

# Open input data entry
entry = imas.DBEntry(
    imas.ids_defs.HDF5_BACKEND, "ITER_MD", 111001, 103, "public", data_version="3"
)
entry.open()

# Get the pf_active IDS
pf = entry.get("pf_active")

# Inspect the IDS
imas.util.inspect(pf, hide_empty_nodes=True)

entry.close()

import imas.util

# Open input data entry
entry = imas.DBEntry(
    imas.ids_defs.HDF5_BACKEND, "ITER_MD", 120000, 204, "public", data_version="3"
)
entry.open()

# Get the ec_launchers IDS
pf = entry.get("ec_launchers")

# Inspect the IDS
imas.util.inspect(pf, hide_empty_nodes=True)

entry.close()
